How to Install a Frameless Shower Screen in 7 Steps
A frameless shower screen can transform your bathroom with a sleek, modern appearance. Proper installation is critical to ensure functionality and safety. Here’s a comprehensive guide to help you install a frameless shower screen in seven precise steps.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials to ensure a smooth installation process.
Tools:
- Measuring tape
- Spirit level
- Drill and drill bits (suitable for tiles or other materials)
- Silicone gun
- Screwdriver
- Rubber mallet
- Glass suction cups
Materials:
- Frameless shower screen kit (glass panels, hinges, brackets, seals)
- Wall anchors
- Screws
- Transparent silicone sealant
Step 1: Measure and Prepare the Space
Accurate measurements are the foundation of a successful installation.
- Use a measuring tape to determine the dimensions of your shower area. Note the height and width of the opening.
- Check for any irregularities in the walls or floor using a spirit level. Uneven surfaces may require adjustments or shimming.
- Verify the specifications of your shower screen kit to ensure compatibility with the space.
Tip: Clean the installation area thoroughly to remove dust, grease, and debris. This ensures a better seal later.
Step 2: Mark Drill Points on the Wall
Precision in marking drill points is crucial to avoid costly mistakes.
- Position the wall brackets or channels included in the shower screen kit against the wall.
- Use a pencil to mark the exact locations where screws will be installed.
- Double-check all measurements to confirm the marks align perfectly with the screen dimensions.
Safety Note: Avoid marking over grout lines as drilling into grout can weaken its integrity.
Step 3: Drill and Secure Wall Anchors
This step ensures the stability of the glass panels.
- Using the appropriate drill bit, drill holes into the wall at the marked points.
- Insert wall anchors into the drilled holes. These anchors provide a secure base for screws.
- Align the brackets or channels with the holes and fix them into place with screws. Use a screwdriver to tighten securely.
Step 4: Attach Hinges or Fixed Panel Brackets
Prepare the structure to support the glass.
- If your frameless shower screen includes a door, install the hinges onto the wall or fixed panel brackets first.
- Ensure the hinges are level and securely fastened.
- Tighten all screws without overtightening, which can damage the hardware.
Tip: Refer to the manufacturer’s instructions for specific hinge installation guidance.

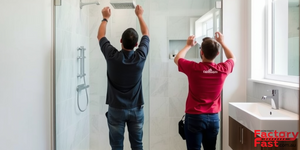

Step 5: Position and Secure the Glass Panels
Glass panels require careful handling to prevent damage or injury.
- Using glass suction cups, lift the glass panels into place.
- Align the panels with the brackets, channels, or hinges installed earlier.
- Secure the panels in place using the provided hardware. If the screen includes a door, attach it to the hinges and test its movement.
Safety Note: Always work with a partner when handling large glass panels to minimise the risk of accidents.
Step 6: Install Seals and Apply Silicone
Seals and silicone prevent leaks and enhance stability.
- Fit rubber or PVC seals along the edges of the glass panels where required.
- Apply a continuous bead of transparent silicone sealant along the base and vertical edges of the glass.
- Smooth the silicone with a damp finger or a silicone tool for a clean finish.
Allow the silicone to cure according to the manufacturer’s recommendations, typically 24 hours.
Step 7: Inspect and Test the Installation
The final step ensures everything is functional and secure.
- Check all screws, brackets, and hinges for tightness.
- Open and close the shower door to test its movement. Adjust the hinges if necessary.
- Inspect the silicone seals for gaps and reapply if needed.
- Clean the glass panels with a glass cleaner to remove fingerprints or debris.
Tip: Wait until the silicone is fully cured before using the shower to avoid leaks.
